Place of Origin:
CHINA
Brand Name:
TR
Certification:
CE/ISO
Model Number:
TR-736
Contact Us

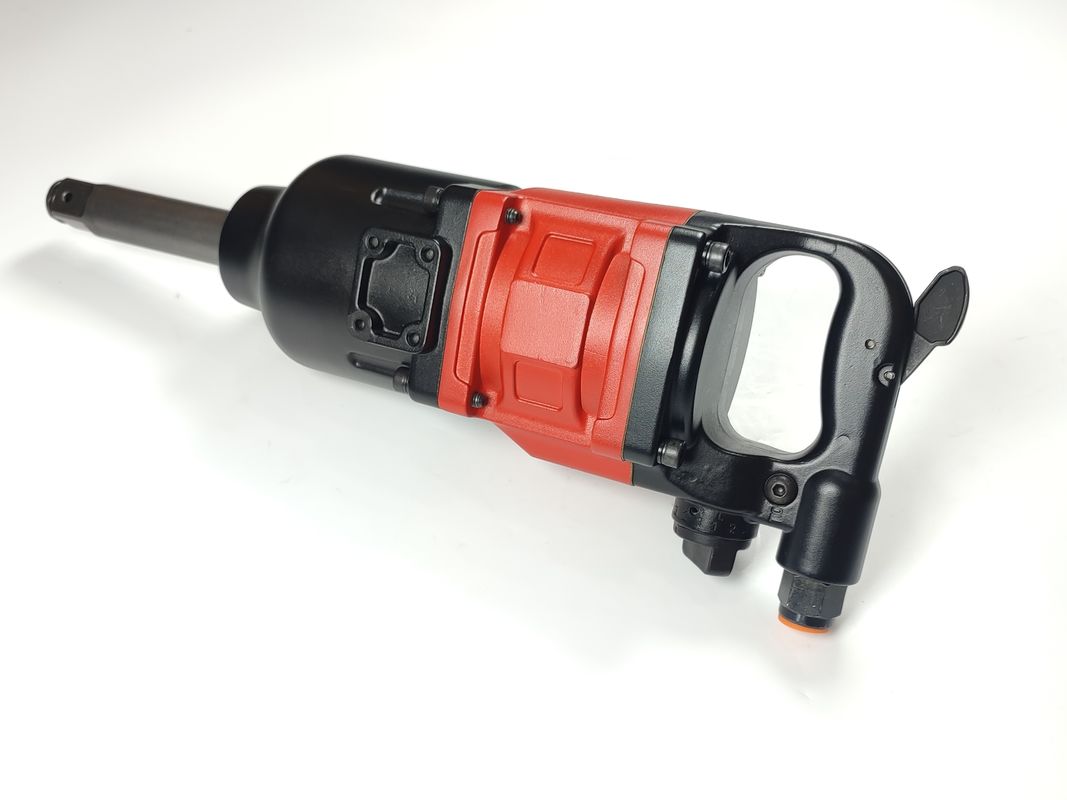

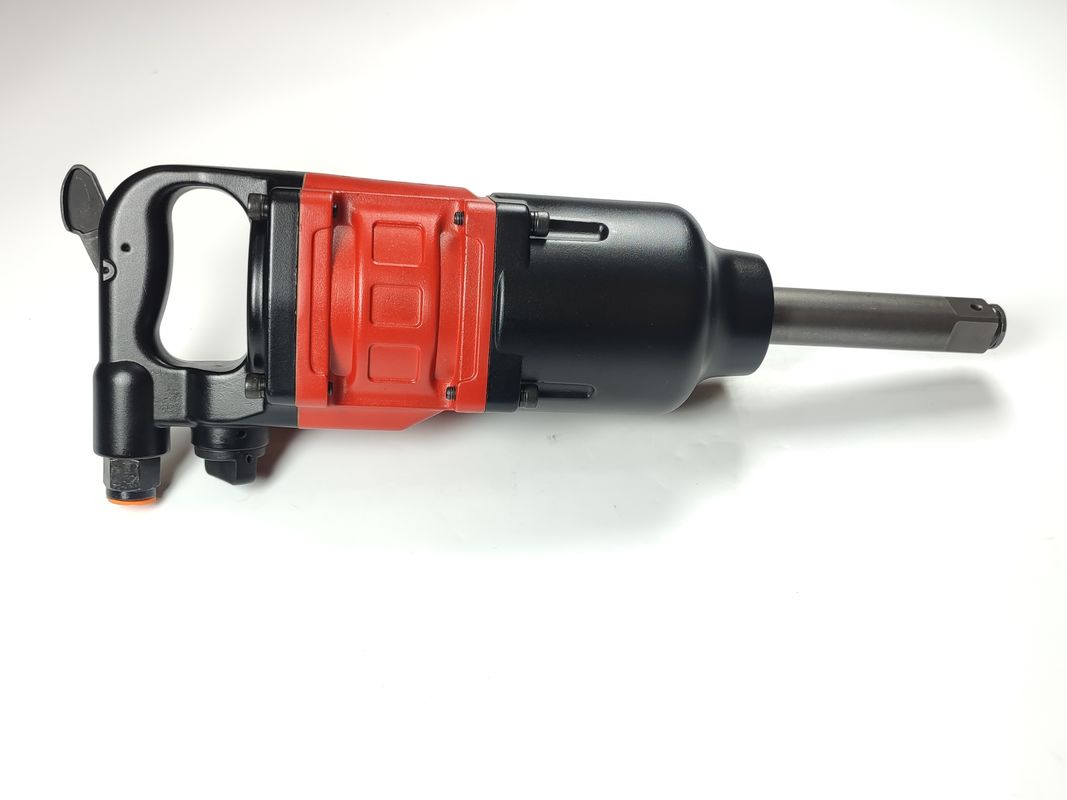

Air lmpact Wrench parts 1/2" Air Impact Wrench Heavy Duty Pneumatic Tools Wrench Pneumatic Torque Wrench
Item | Square | Free speed (r.p.m) | Max torque (N.m) | Hammer mechanism | Air inlet | Anvil length | Bolt capacity | Air pressure | N.W |
TR-736 | 1〃 | 4000 | 3000 | Twin hammer | 1/2” | 6" or 8" | M38 | 90 PSI | 12.4kg |
Structure and working principle
The hydraulic torque wrench (hydraulic torque wrench) consists of two parts: a manual high-pressure pump and a hydraulic torque wrench with a ratchet wheel. By manipulating the handle of the manual high-pressure pump, the hydraulic cylinder generates thrust, which forms a torque through the crank system and drives the nut to rotate at an angle, transmitting the torque to the hexagonal socket with a ratchet device and then to the bolt connection. The bolts are pre tightened as required.
The manual high-pressure pump consists of a joystick, high-pressure pump, directional valve, oil tank, pressure gauge, and oil delivery pipe with a quick connector. The hydraulic wrench with a ratchet wheel is composed of a high-pressure oil port, hydraulic cylinder, crank, reaction rod, ratchet device, sleeve, etc. The former is a power source component, and the latter is a torque actuator.
FAQ:
1.Q:Can you provide the samples to us?
A: yes, we can provide the sample to you in free, but the cost of the freight on your account.
2. Q:Can you do the order according to the customer requirement?
A:Yes, we can do the order according to your sample or drawings, OEM/ODM service provided.
3. Q:What is your delivery time?
A:Normally, it's 7 days if the goods are in stock. It will takes about 15-25days if the goods are not in stock, Mainly depends on the order quantity.
4.Q:What is your terms of payment?
A:Generally 30% value of goods as deposit, balance amount against the copy of the BL.
5. Q: How long is the warranty ?
A: 14 months since the container shipped except quick-wear parts.
