Place of Origin:
CHINA
Brand Name:
TR
Certification:
ISO/CE
Model Number:
TR-770
Contact Us

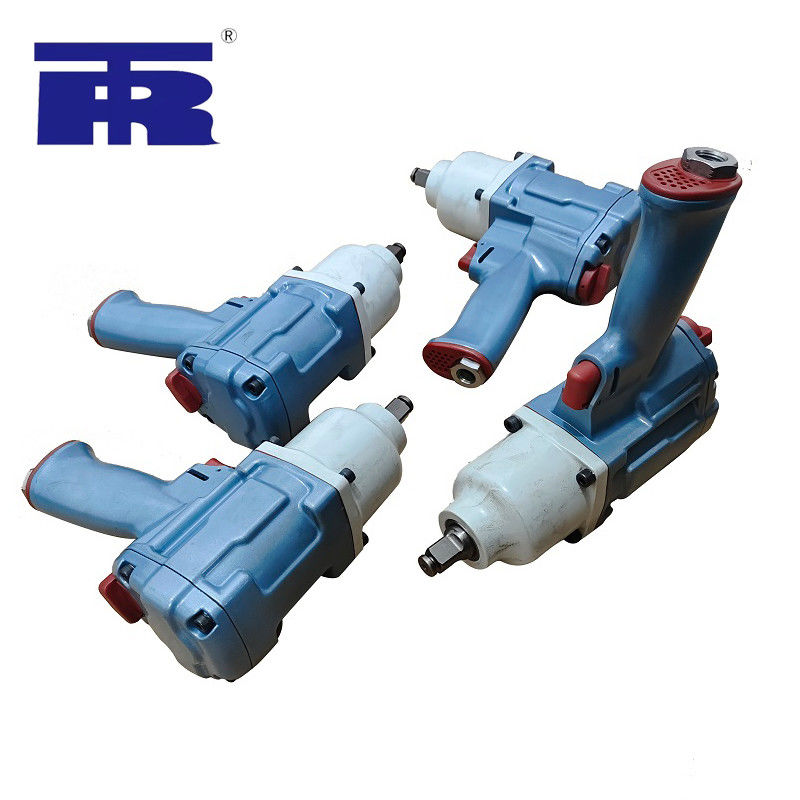

Composite Air Impact Wrench1/2" High Torque Air Wrench Repair Tools Air-Powered Pneumatic Impact Wrench
It is an efficient and safe tool for disassembling and assembling screws. The force generated by a large Impact Wrench is equivalent to the force that two adults use to tighten the screws with a spanner more than two meters long. Its force is usually proportional to the pressure of the air compressor, when the pressure is large,then the power is large, and vice versa is small. Therefore, once too much pressure is used, it is easy to damage the screw when tightening the screw.
The power source is the compressed air output by the air compressor. When the compressed air enters the Impact Wrench cylinder, it drives the impeller inside to rotate to generate rotational power. The impeller then drives the connected striking part to perform a hammering motion, and after each strike, the screw is tightened or removed.
| Item 型号 | Square 方头尺寸 | Free speed 空转转速 (r.p.m) | Max torque 最大也力 (N.m) | Hammer mechanism 打击结构 | Air inlet 进气口 尺寸 | Anvil length 外露长度 | Bolt capacity 螺栓 最大能力 | Air pressure 空气压力 | N.W 净重 |
| TR-770 | 3/4" or1〃 | 4800 | 1880 | Twin hammer or pin less Hammer | 3/8" | 1.5〃 | M28 | 90 PSI | 5.75kg |
| TR-175 | 1/2” | 6000 | 950 | Twin hammer | 1/4" | 1,z | M18 | 90 PSI | 2.75kg |
| TR-7595 | 1〃 | 3700 | 4000 | pin less Hammer | 1/2〃 | 8〃 or 9" | M50 | 90 PSI | 173kg |
FAQ:
1.Q:Can you provide the samples to us?
A: yes, we can provide the sample to you in free, but the cost of the freight on your account.
2. Q:Can you do the order according to the customer requirement?
A:Yes, we can do the order according to your sample or drawings, OEM/ODM service provided.
3. Q:What is your delivery time?
A:Normally, it's 7 days if the goods are in stock. It will takes about 15-25days if the goods are not in stock, Mainly depends on the order quantity.
4.Q:What is your terms of payment?
A:Generally 30% value of goods as deposit, balance amount against the copy of the BL.
5. Q: How long is the warranty ?
A: 14 months since the container shipped except quick-wear parts.
Ideal for tire changing and general assembling work and other workshop applications. Widely applicated in auto repair,
shipbuilding, construction, industrial installation, hardware industry etc.
* Special surface treated aluminum alloy combined with composite housing.
* Smart handle in ergonomic design especially suitable for majority of users.
* Five-protection bar design, preventing housing from damage.
* Adopting imported bearings, high precision and longer service life.
* Air inlet with stainless steel muffler, better lower working noise.
* Air inlet in 360 swivel design.
