Place of Origin:
CHINA
Brand Name:
TR
Certification:
ISO/CE
Model Number:
TR-770
Contact Us

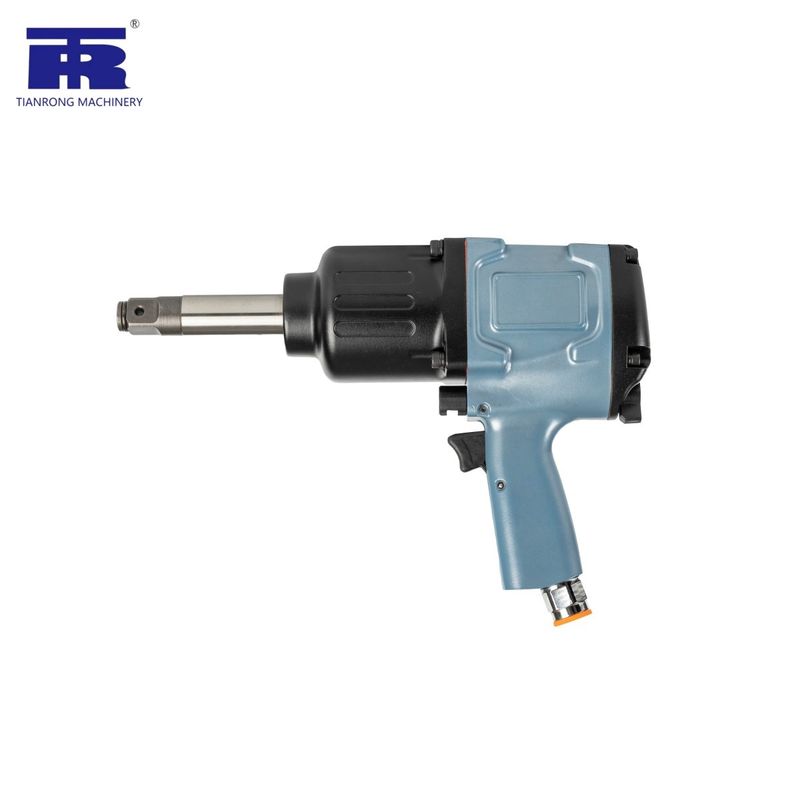

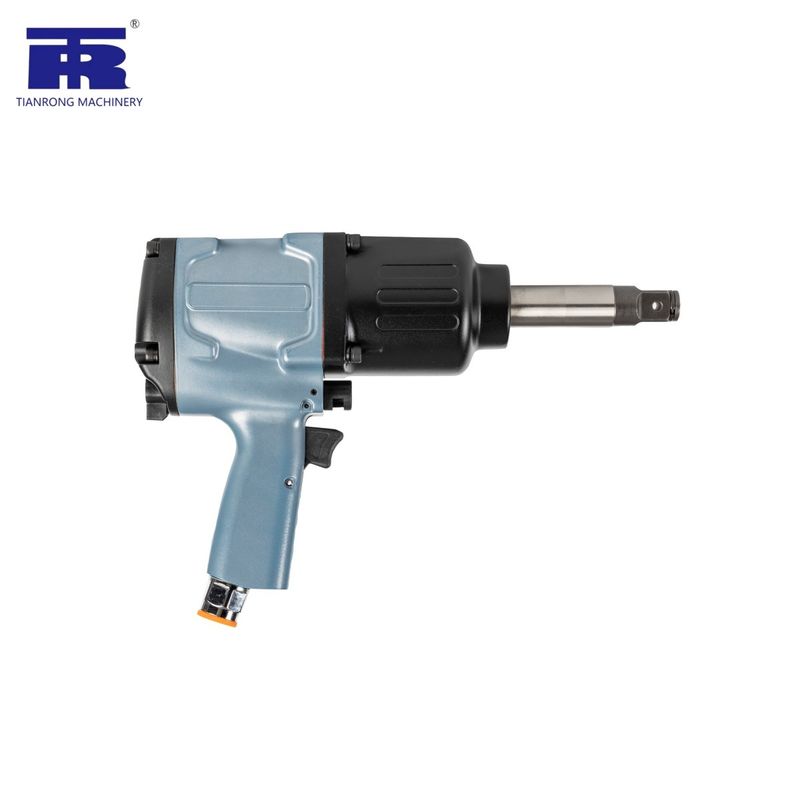

Pneumatic Imact GunIndustrial Super Duty Pneumatic Wrenches 1/2" Air Impact Wrench with Twin Hammer
The Astro Tool TR-770" "THOR" Impact Wrench is designed with a patented oversized floating air motor and a twin-hammer assembly that puts the weight over your hand for balance, and allows for industry leading power at only 6.7" in length. This impact wrench is rated 940 ft/lb traditiol max torque (compared to 1,600 ft-lbs nut-busting or bolt-breakaway). This tool includes a swinging forward and reverse switch, handle located power adjustment wheel, and a two-stage trigger for a lighter touch without adjusting the tool.
1.CompaCt aluminium housing for better access in tight areas
2.Durable and light weight
3.Jumbo hammer mechanism
4.High working torque
5.One hand rotation switch-forward/reverse for either left or right handed users
6.Speed control-one hand operation with 3 position disc switch
|
Item 型号 |
Square 方头尺寸 |
Free speed 空转转速 (r.p.m) |
Max torque 最大扭力 (N.m) |
Hammer mechanism 打击结构 |
Air inlet 进气口 尺寸 |
Anvil length 外露长度 |
Bolt capacity 螺栓 最大能力 |
Air pressure 空气压力 | N.W 净重 |
| TR-770 | 3/4" or1" | 4800 | 1880 |
Twin hammer or pinless Hammer |
3/8" | 1.5" | M28 | 90 PSI | 5.75kg |
| TR-175 | 1/2" | 6000 | 950 | Twin hammer | 1/4" | 1" | M18 | 90 PSI | 2.75kg |
| TR-7595 | 1" | 3700 | 4000 | pinless Hammer | 1/2〃 | 8" or 9" | M50 | 90 PSI | 173kg |
FAQ:
1.Q:Can you provide the samples to us?
A: yes, we can provide the sample to you in free, but the cost of the freight on your account.
2. Q:Can you do the order according to the customer requirement?
A:Yes, we can do the order according to your sample or drawings, OEM/ODM service provided.
3. Q:What is your delivery time?
A:Normally, it's 7 days if the goods are in stock. It will takes about 15-25days if the goods are not in stock, Mainly depends on the order quantity.
4.Q:What is your terms of payment?
A:Generally 30% value of goods as deposit, balance amount against the copy of the BL.
5. Q: How long is the warranty ?
A: 14 months since the container shipped except quick-wear parts.
1.CompaCt aluminium housing for better access in tight areas
2.Durable and light weight
3.Jumbo hammer mechanism
4.High working torque
5.One hand rotation switch-forward/reverse for either left or right handed users
6.Speed control-one hand operation with 3 position disc switch
