Place of Origin:
China
Brand Name:
TR
Certification:
ISO
Model Number:
TR-5531
Contact Us
Video
Video
Video
1 Inch Air Imact Wrench Automotive Truck Power 1 Inch Air Pneumatic
OEM is ok.
OEM is ok, Discuss if you have other requirements.
Best Mechanics' Creeper for 2023

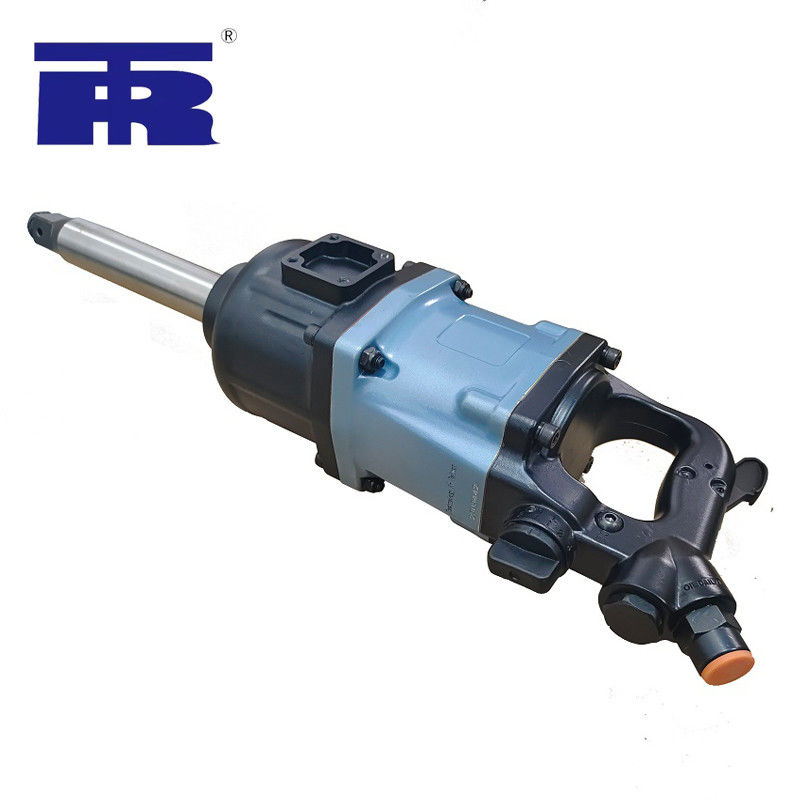

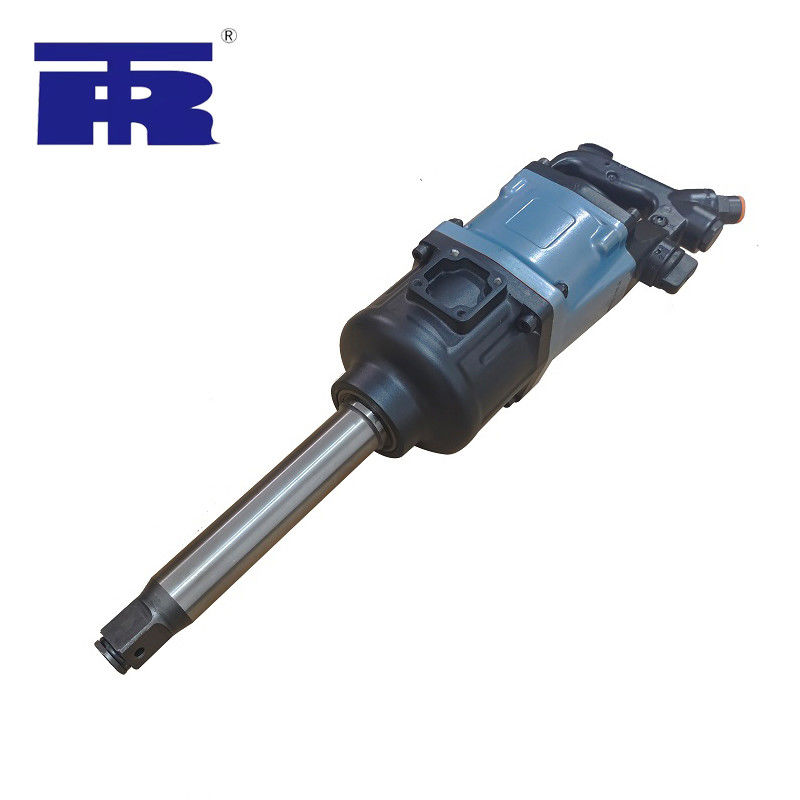

OMade in the CHINA, the Ingersoll Rand TR-5531 features a titanium hammer case and steel wear plate to withstand harsh work environments. An adjustable four-position power regulator means you can switch between power modes and adjust torque output for each task, while a one-handed forward-reverse mechanism enables direction changes at the push of a button
The Impact Wrench is a kind of pneumatic tool, because the noise when it works is louder than the sound of a gun, so it is named after it, and it is also called a pneumatic wrench.
3. Technique Parameters
| Item | Square | Free speed (r.p.m) | Max torque (N.m) | Hammer mechanism | Air inlet | Anvil length | Bolt capacity | Air pressur | N.W |
| TR-6691 | 3/4" or 1” | 4800 | 1880 | Twin hammer or pin less Hammer | 3/8" | 1.5〃 | M28 | 90 PSI | 5.75kg |
| TR-1751 | 1/2〃 | 6000 | 950 | Twin hammer | 1/4" | 1” | M18 | 90 PSI | 2.75kg |
| TR-2801 | 1/2〃 | 7200 | 680 | Twin hammer | 1/4" | 1” | M16 | 90 PSI | 2.45kg |
| TR-5331 | 1” | 4200 | 2550 | pinless Hammer | 1/2〃 | 6" 2 6" | M34 | 90 PSI | 9.5kg |
| TR-6351 | 1” | 4000 | 3000 | pinless Hammer | 1/2〃 | 6" or 8" | M36 | 90 PSI | 13.25kg |
| TR-6371 | 1” | 4000 | 2800 | pinless Hammer | 1/2〃 | 6" or 8" | M36 | 90 PSI | 12.1kg |
| TR-6361 | 1” | 4000 | 3000 | pinless Hammer | 1/2〃 | 6" or 8" | M38 | 90 PSI | 14.25kg |
| TR-1801 | 1” | 3700 | 3800 | pinless Hammer | 1/2〃 | 6" or 8" | M45 | 90 PSI | 16.9kg |
| TR-1901 | 1” | 3700 | 4000 | pinless Hammer | 1/2〃 | 6" or 8" | M50 | 90 PSI | 17.3kg |
4. Product photos with details
FAQ:
1.Q:Can you provide the samples to us?
A: yes, we can provide the sample to you in free, but the cost of the freight on your account.
2. Q:Can you do the order according to the customer requirement?
A:Yes, we can do the order according to your sample or drawings, OEM/ODM service provided.
3. Q:What is your delivery time?
A:Normally, it's 7 days if the goods are in stock. It will takes about 15-25days if the goods are not in stock, Mainly depends on the order quantity.
4.Q:What is your terms of payment?
A:Generally 30% value of goods as deposit, balance amount against the copy of the BL.
5. Q: How long is the warranty ?
A: 14 months since the container shipped except quick-wear parts.
