Place of Origin:
China
Brand Name:
TR
Certification:
ISO
Model Number:
TR-6691
Contact Us
1/2 Inch Air Imact Wrenches 3/4" or 1" Pneumatic Torque Tool Portable Tire Changing Air Impact Wrench
Delivering up to 1,350 foot-pounds of nut-busting torque, the TR-6691 Drive Air Impact Wrench capably tackles the most demanding assembly and disassembly jobs. The finely tuned twin-hammer impact mechanism punishes tough bolts and powers through heavy-duty applications such as suspension work and heavy equipment repair.
Every component, mechanism, and function has undergone rigorous testing to ensure long-lasting performance. The result is a finely tuned workhorse that endures the toughest applications.
3. Technique Parameters
| Item | Square | Free speed (r.p.m) | Max torque (N.m) | Hammer mechanism | Air inlet | Anvil length | Bolt capacity | Air pressur | N.W |
| TR-6691 | 3/4" or 1” | 4800 | 1880 | Twin hammer or pin less Hammer | 3/8" | 1.5〃 | M28 | 90 PSI | 5.75kg |
| TR-1751 | 1/2〃 | 6000 | 950 | Twin hammer | 1/4" | 1” | M18 | 90 PSI | 2.75kg |
| TR-2801 | 1/2〃 | 7200 | 680 | Twin hammer | 1/4" | 1” | M16 | 90 PSI | 2.45kg |
| TR-5331 | 1” | 4200 | 2550 | pinless Hammer | 1/2〃 | 6" 2 6" | M34 | 90 PSI | 9.5kg |
| TR-6351 | 1” | 4000 | 3000 | pinless Hammer | 1/2〃 | 6" or 8" | M36 | 90 PSI | 13.25kg |
| TR-6371 | 1” | 4000 | 2800 | pinless Hammer | 1/2〃 | 6" or 8" | M36 | 90 PSI | 12.1kg |
| TR-6361 | 1” | 4000 | 3000 | pinless Hammer | 1/2〃 | 6" or 8" | M38 | 90 PSI | 14.25kg |
| TR-1801 | 1” | 3700 | 3800 | pinless Hammer | 1/2〃 | 6" or 8" | M45 | 90 PSI | 16.9kg |
| TR-1901 | 1” | 3700 | 4000 | pinless Hammer | 1/2〃 | 6" or 8" | M50 | 90 PSI | 17.3kg |

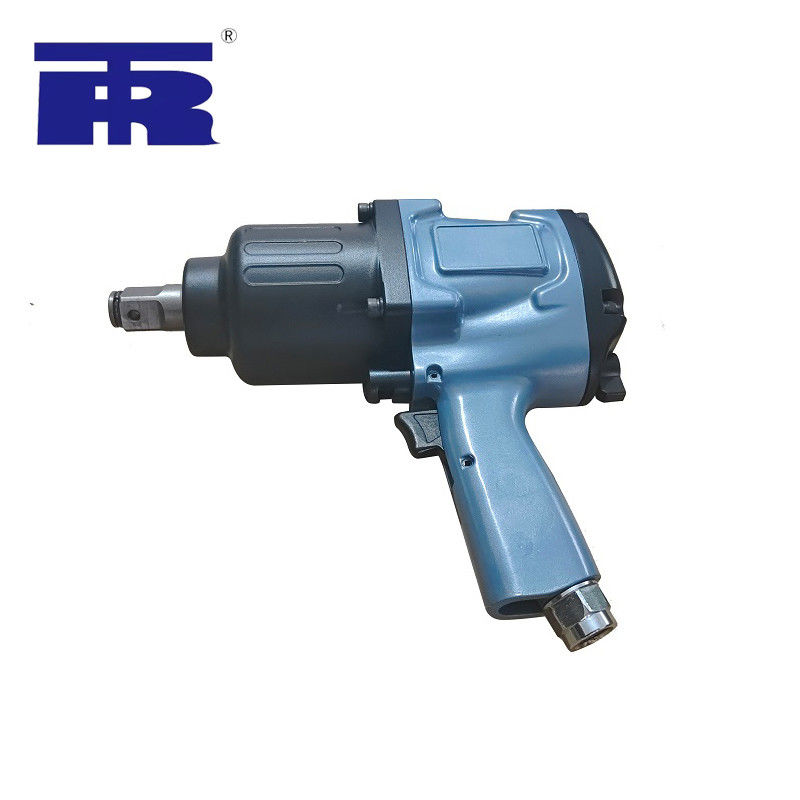

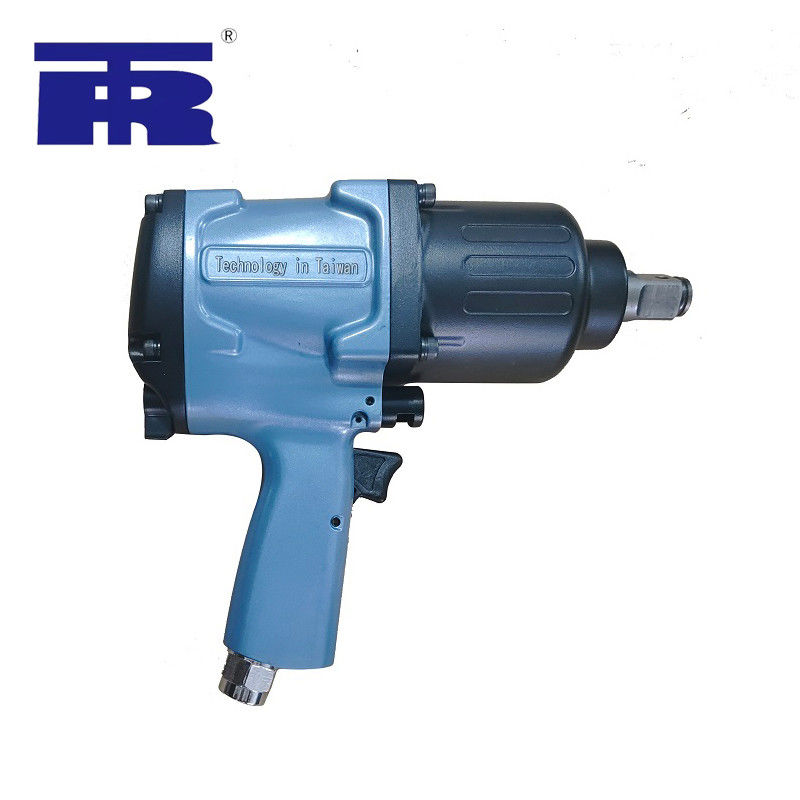

4. Product photos with details
Q:Why choose us?
A:professional manufacturer for 10 years;
good quality material and advanced test machine
Q:What is your MOQ?
A:10 pcs is ok for each model.At first time,trial order is okay.
Q:What about your warranty?
A: one year,except man-made destroyed.
Q:how about your payment way ?
A: 30% T/T in advance,70% balance on sight of BL copy by T/T or irrevocable L/C.
Q:Can you make OEM/ODM order?
A:Yes,we have rich experience on OEM/ODM order.
