Place of Origin:
China
Brand Name:
TR
Certification:
ISO
Model Number:
TR-6691
Contact Us
1/2 Inch Air Imact Wrenches3/4" tool Twin Hammer Pneumatic Wrench air tool tools Air Hammer Pneumatic air impact wrench
Available in multiple speeds for each forward and reverse direction, our impact wrench range offers torque outputs to 500 ft-lb. Alloy steel, heat treated, helical gears for maximum durability.
Product Description:
The Impact Wrench is a kind of pneumatic tool, because the noise when it works is louder than the sound of a gun, so it is named after it, and it is also called a pneumatic wrench.
The power source is the compressed air output by the air compressor. When the compressed air enters the Impact Wrench cylinder, it drives the impeller inside to rotate to generate rotational power. The impeller then drives the connected striking part to perform a hammering motion, and after each strike, the screw is tightened or removed.
3. Technique Parameters
| Item | Square | Free speed (r.p.m) | Max torque (N.m) | Hammer mechanism | Air inlet | Anvil length | Bolt capacity | Air pressur | N.W |
| TR-6691 | 3/4" or 1” | 4800 | 1880 | Twin hammer or pin less Hammer | 3/8" | 1.5〃 | M28 | 90 PSI | 5.75kg |
| TR-1751 | 1/2〃 | 6000 | 950 | Twin hammer | 1/4" | 1” | M18 | 90 PSI | 2.75kg |
| TR-2801 | 1/2〃 | 7200 | 680 | Twin hammer | 1/4" | 1” | M16 | 90 PSI | 2.45kg |
| TR-5331 | 1” | 4200 | 2550 | pinless Hammer | 1/2〃 | 6" 2 6" | M34 | 90 PSI | 9.5kg |
| TR-6351 | 1” | 4000 | 3000 | pinless Hammer | 1/2〃 | 6" or 8" | M36 | 90 PSI | 13.25kg |
| TR-6371 | 1” | 4000 | 2800 | pinless Hammer | 1/2〃 | 6" or 8" | M36 | 90 PSI | 12.1kg |
| TR-6361 | 1” | 4000 | 3000 | pinless Hammer | 1/2〃 | 6" or 8" | M38 | 90 PSI | 14.25kg |
| TR-1801 | 1” | 3700 | 3800 | pinless Hammer | 1/2〃 | 6" or 8" | M45 | 90 PSI | 16.9kg |
| TR-1901 | 1” | 3700 | 4000 | pinless Hammer | 1/2〃 | 6" or 8" | M50 | 90 PSI | 17.3kg |

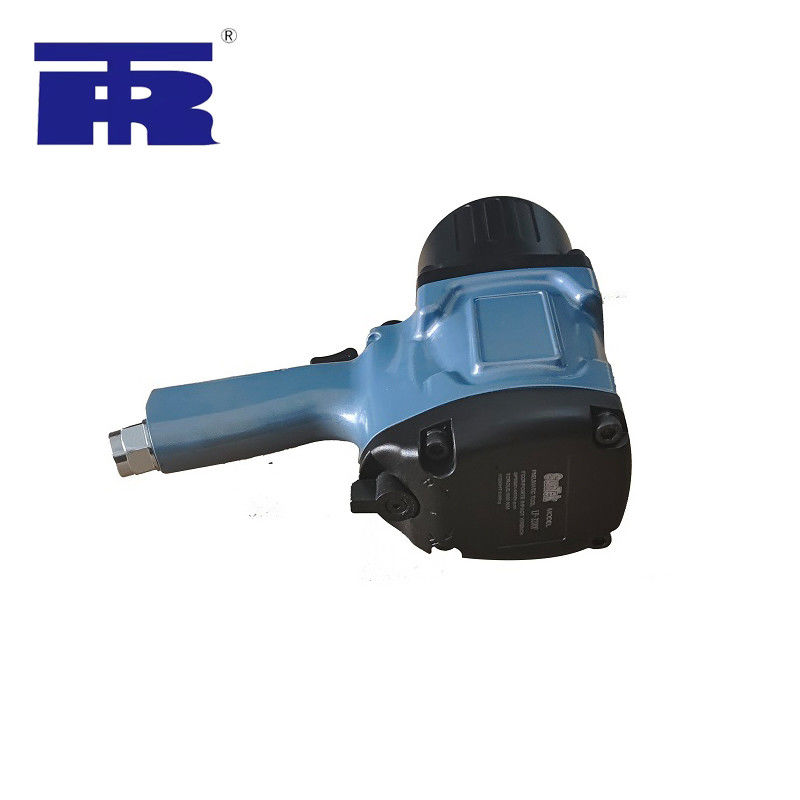

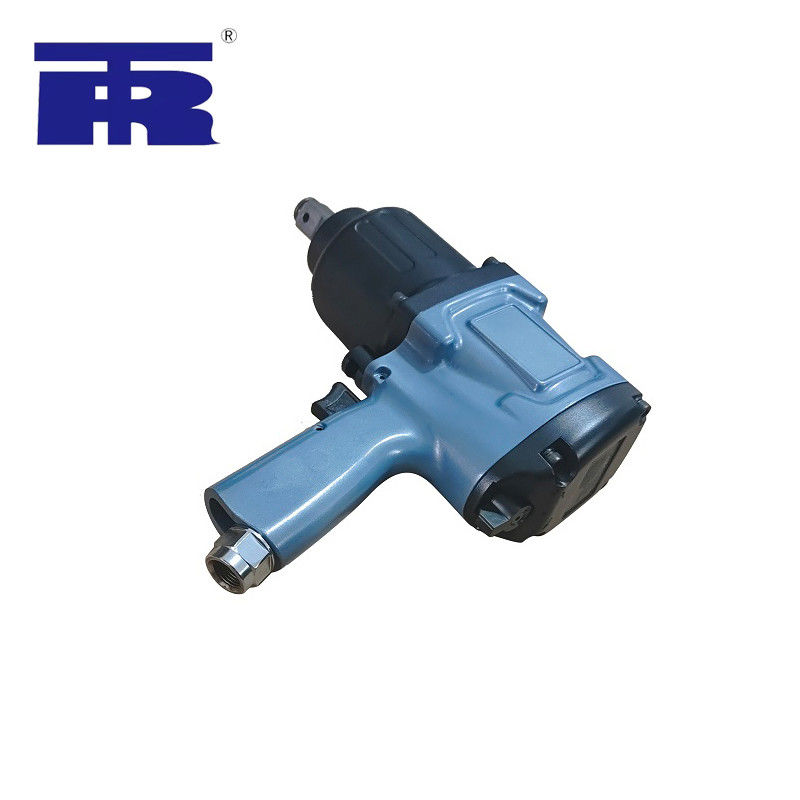

4. Product photos with details
FAQ
Q1: What's your product line?
A: professional air impact wrench ;industrial grade tighten tool, lubrication equipment;Screw air compressor air end, Screw aircompressor .
Q2: Can you provide samples?
A: Yes. Customers can buy samples from us.
Q3:Are there any discounts for large orders?
A: Of course. According to different quantities.
Q4: How soon will the order be completed and shipped?
A: The lead time is about 30-35 days based on your quantity. After the transaction order is completed, we usually complete the delivery time 30days . If the order volume is large on holidays or activities. There will be a little delay.
Q5 : Can we put our logo on our products? Is there any extra cost for it?
A: Yes, we can do OEM for customers. Logo sticker/laser/engraving are possible. Different ways different costs. We can discuss details.
Q6: How about your quality control?
A: All of our products are 100% tested before shipment.
Q7: Do you have a warranty policy?
A: If there is any quality problem of the product, you can take photos and videos to us, and our QC will serve you in time. If
it's a product design defect, we can provide some repair parts for free in your next mass order. Your satisfaction is our commitment!
Q8: What's your payment terms?
A:We accept T/T or L/C.
Q9: What’s your certification?
A: Most of our products passed the CE test.
