Place of Origin:
CHINA
Brand Name:
TR
Certification:
CE/ISO
Model Number:
TR-736
Contact Us

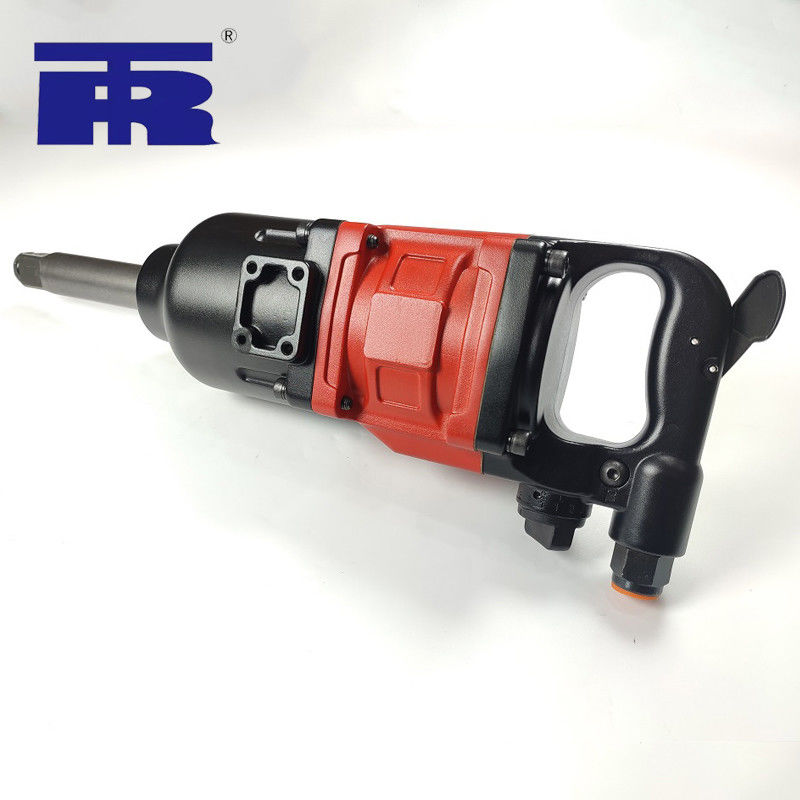

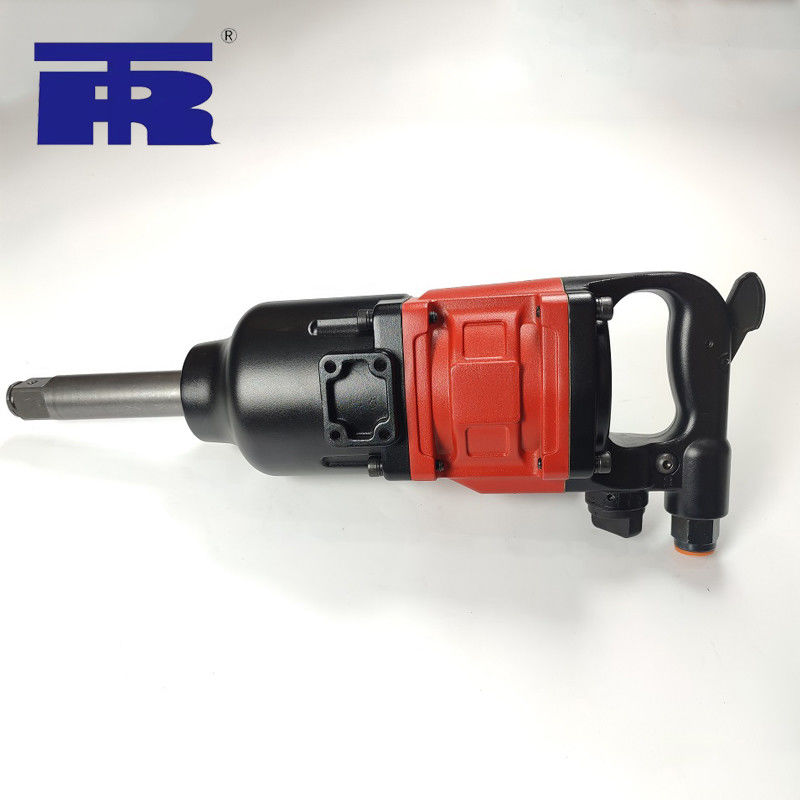

Air lmpact Wrench partsrepair tool pipe wrench pneumatic car truck repair tools air impact wrench
| Item | Square | Free speed (r.p.m) | Max torque (N.m) | Hammer mechanism | Air inlet | Anvil length | Bolt capacity | Air pressure | N.W |
| TR-736 | 1〃 | 4000 | 3000 | Twin hammer | 1/2” | 6" or 8" | M38 | 90 PSI | 12.4kg |
When the end face of the nut contacts the end face of the workpiece, the resistance moment sharply increases. The rotating spiral groove causes the ball to move backwards with the active impact block, overcoming the friction force and the pressure of the working spring, causing the teeth that engage the active impact block and the driven impact block to disengage. At this point, the driven impact block does not move, while the active impact block continues to move backwards.
After rotating the tooth of the driven impact block, the active impact block moves forward instantaneously due to the action of the working spring, and a angular acceleration is generated along the spiral groove. The active impact block impacts the driven impact block, and the two teeth collide. Then the spiral groove moves the ball and the active impact block backward, and disengages from the mesh. In this way, collisions occur again and again, obtaining the required impact torque, and fastening the nut. Steps for dismantling car tires?
FAQ:
1.Q:Can you provide the samples to us?
A: yes, we can provide the sample to you in free, but the cost of the freight on your account.
2. Q:Can you do the order according to the customer requirement?
A:Yes, we can do the order according to your sample or drawings, OEM/ODM service provided.
3. Q:What is your delivery time?
A:Normally, it's 7 days if the goods are in stock. It will takes about 15-25days if the goods are not in stock, Mainly depends on the order quantity.
4.Q:What is your terms of payment?
A:Generally 30% value of goods as deposit, balance amount against the copy of the BL.
5. Q: How long is the warranty ?
A: 14 months since the container shipped except quick-wear parts.
